Jeep JK Standard Hyline Front Bumper Winch Guard

SKU: 400.100.170
Weight: 16 lb
Dimensions: 18 in × 6 in × 45 in

All JK Models Years With Hyline 400.100.100, 400.100.110, 400.100.120 or 400.100.130 Bumpers Only.

Installation Time:

20 Minutes


1 Year Limited

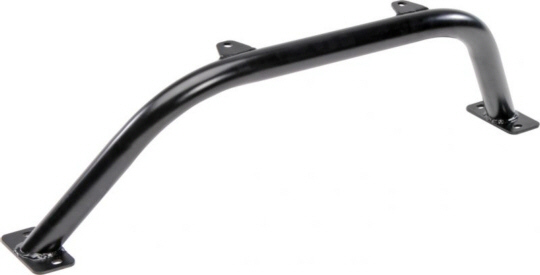

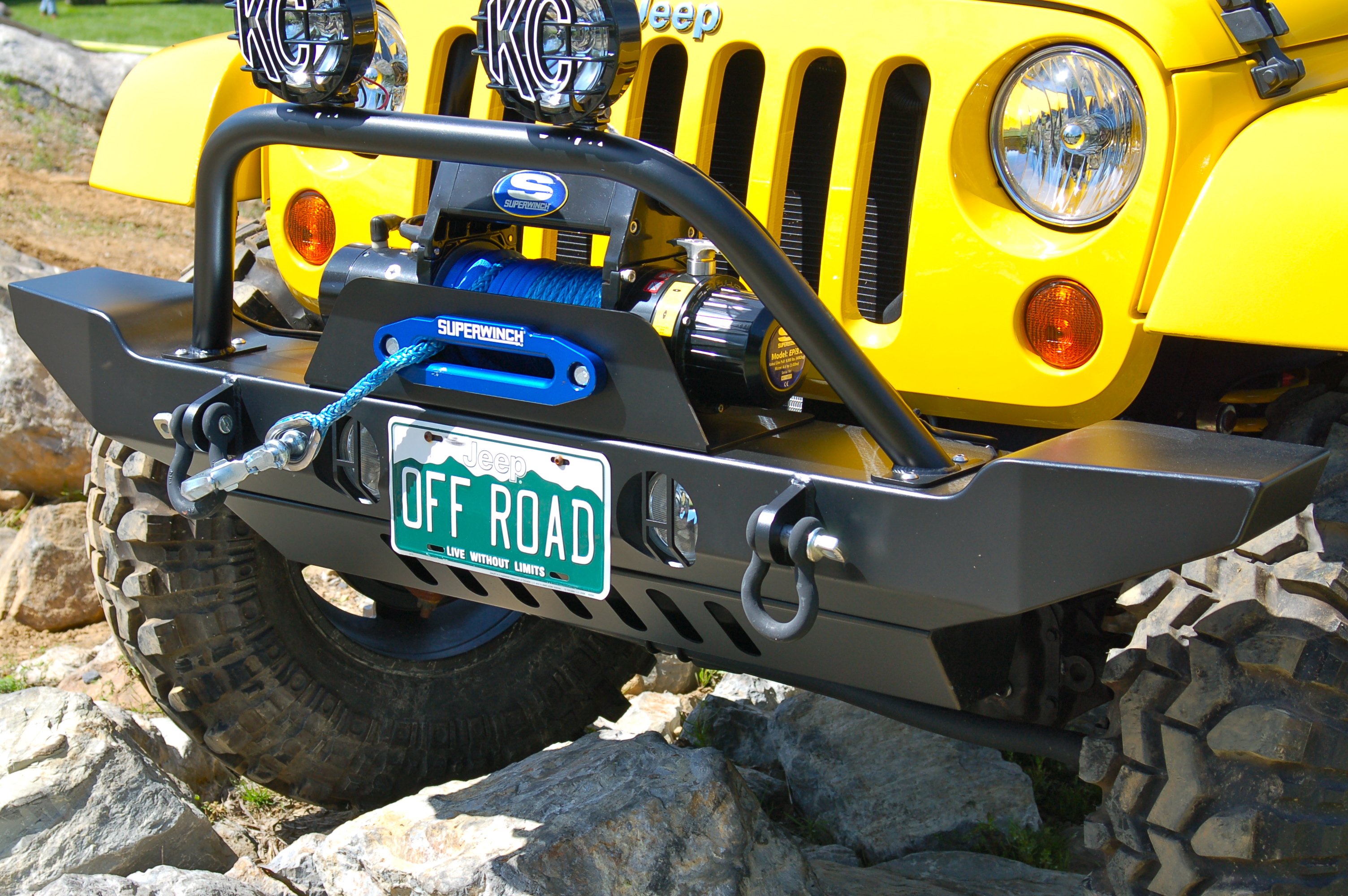

All of our Front Bumpers allow for the optional Winch Guard & Light Bar. These bars will attach to the top of the bumper using supplied 3/8” Stainless Steel Button Head Cap Screws. The bars are made using 1-3/4” Diameter x 1/8” Wall Thick Steel Tubing. They are CNC formed and welded solid to base plates.

All of our Winch Guard/Light Bars come with pre-welded wiring tabs. These allow you to run your aftermarket lighting wires through them instead of wrapping wire ties around the entire bar to hold the wires in place.

The bars are finished with protective E-Coating plus a lightly textured black semi gloss powder coat.

Tools Required:

7/32" Allen wrench.

Parts Included:

1 Light Bar and all required Stainless Steel Hardware
