Jeep JK HiLift Mount

SKU: 400.200.170
Weight: 11 lb
Dimensions: 22 in × 10 in × 9 in

All JK Model Years (Requires Hyline P/N 400.200.150)

Installation Time:

30 Minutes


1 Year Limited

JK HiLift Mount For Hyline Swingout Tire Carrier

(P/N 400.200.150 Accessory Mount Arm is required to install this HiLift Mount)

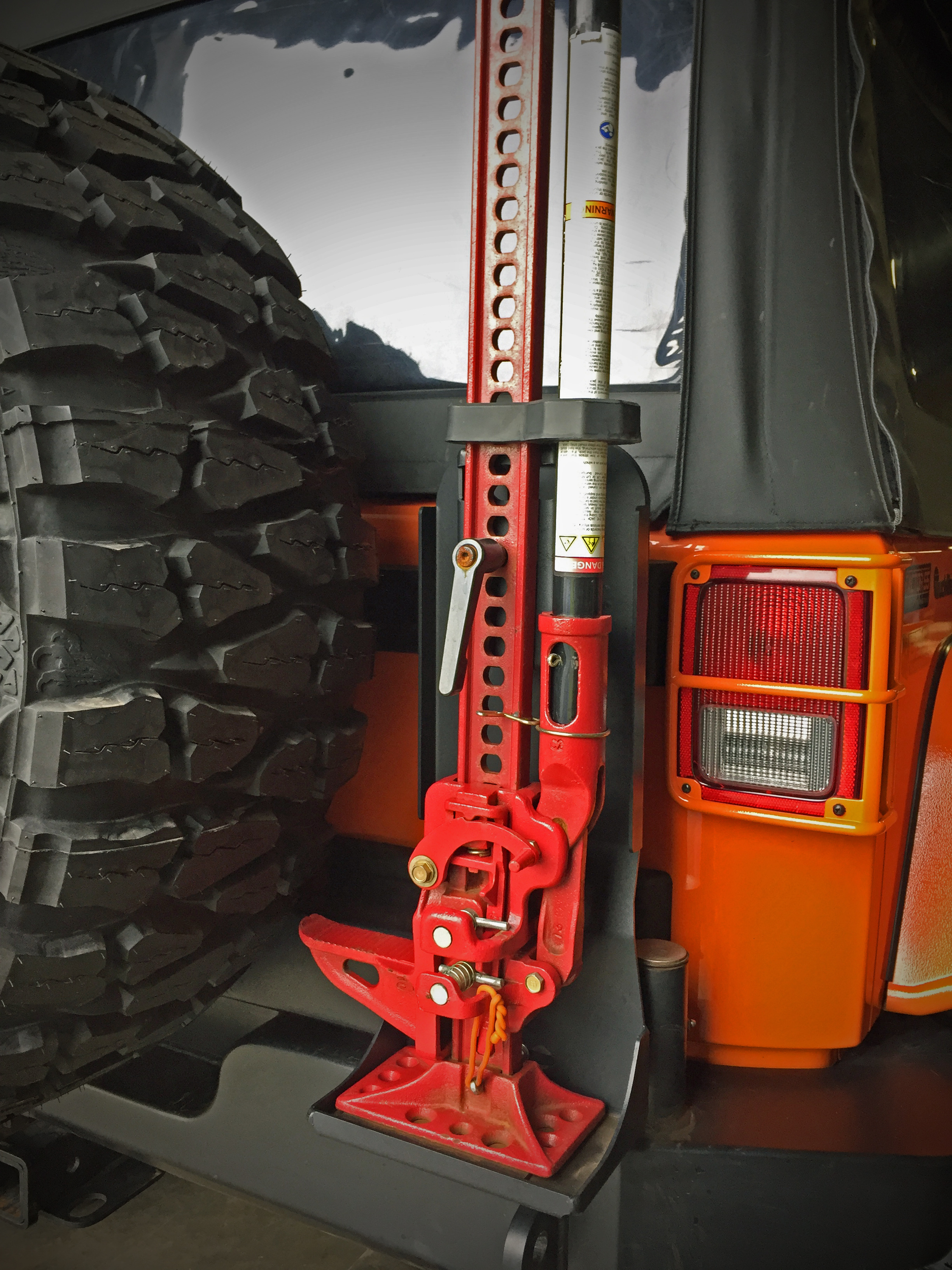

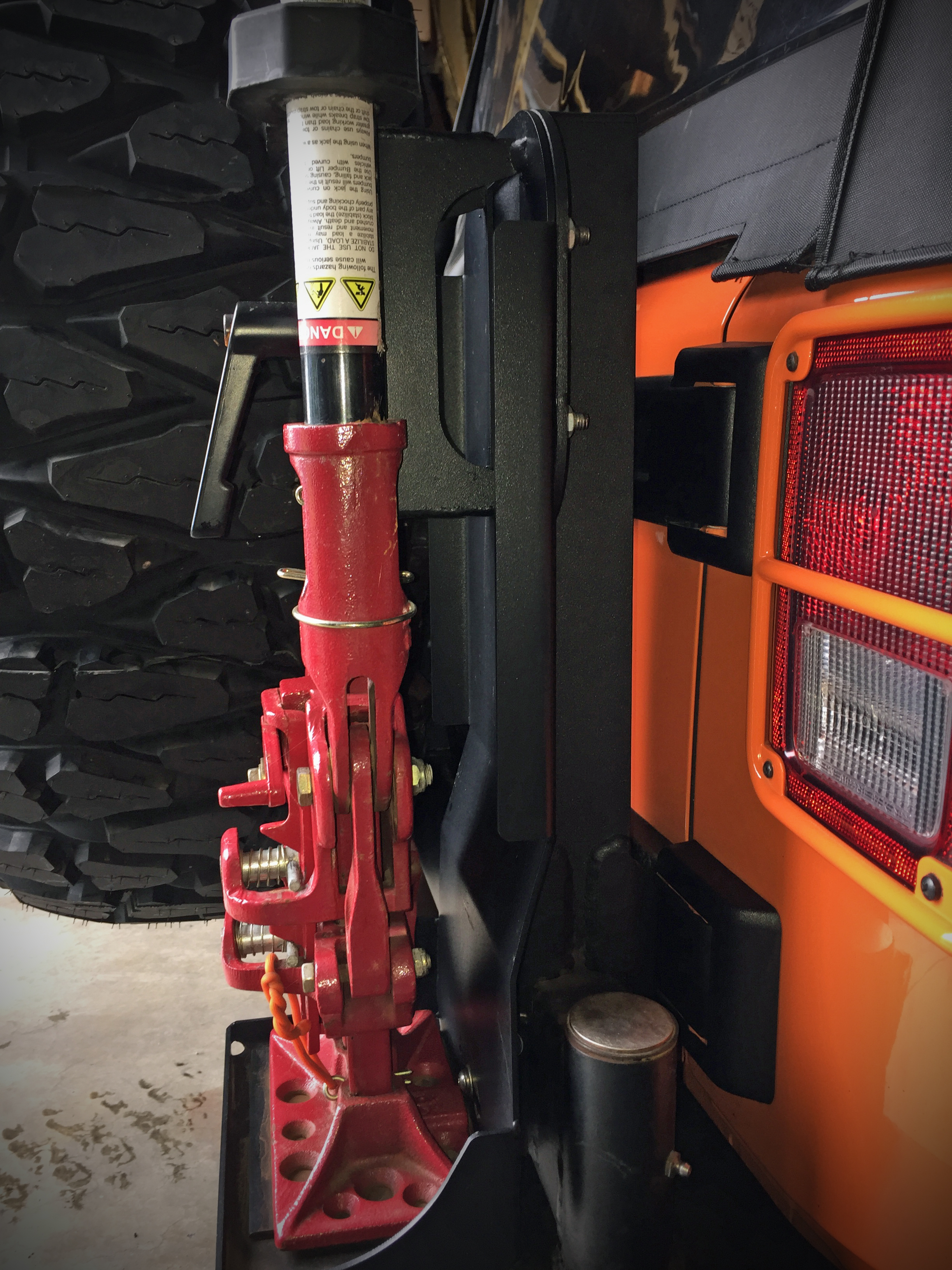

Description: This HiLift jack mount is the perfect addition to the Hyline Offroad swingout tire carrier.  It’s specifically designed to fit with the Hyline Offroad JK Swingout Tire Carrier and features a sturdy and stylish option to hold your HiLift jack outside your vehicle.  Additional features include a plastic wear pad that buffers the jack foot from the mounting bracket, threaded handle to easily remove/reinstall the jack and appropriately placed holes so you can lock your jack to the bracket using a cable lock or pad lock.  All necessary hardware is provided for installation.  The brackets are acid rinsed, zinc phosphate cleaned, e-coated and powder coated with a lightly textured durable black finish.

Note: For proper installation, this product REQUIRES HYLINE P/N 400.200.150 (Accessory Mount Arm).


Proudly Made 100% In USA.

Tools Required:

3/16” Hex Key & ½’’ Socket with Ratchet

Parts Included:

(1) Threaded Handle, (1) 1/2'' Stainless USS (Large) Size Flat Washer, (1) 1/4-20 x 3/4'' Long Stainless Button Head Cap Screw, (1) 1/4'' Stainless Flat Washer, (1) 1/4'' Stainless Split Lock Washer, (4)  5/16-18 Stainless Hex Nuts, (4) 5/16'' Stainless Flat Washers, (4) 5/16'' Stainless Split Lock Washers & (1) Plastic Wear Pad With Double Sided Tape Adhered.
