Jeep JK Tire Carrier | Jeep Swing out Tire Carrier

SKU: 400.200.130
Weight: 41 lb
Dimensions: 32 in × 22 in × 8 in

All JK Series Model Years With Hyline's Rear Bumper w/Tire Carrier Option 400.200.120

Installation Time:

1 Hour


1 Year Limited

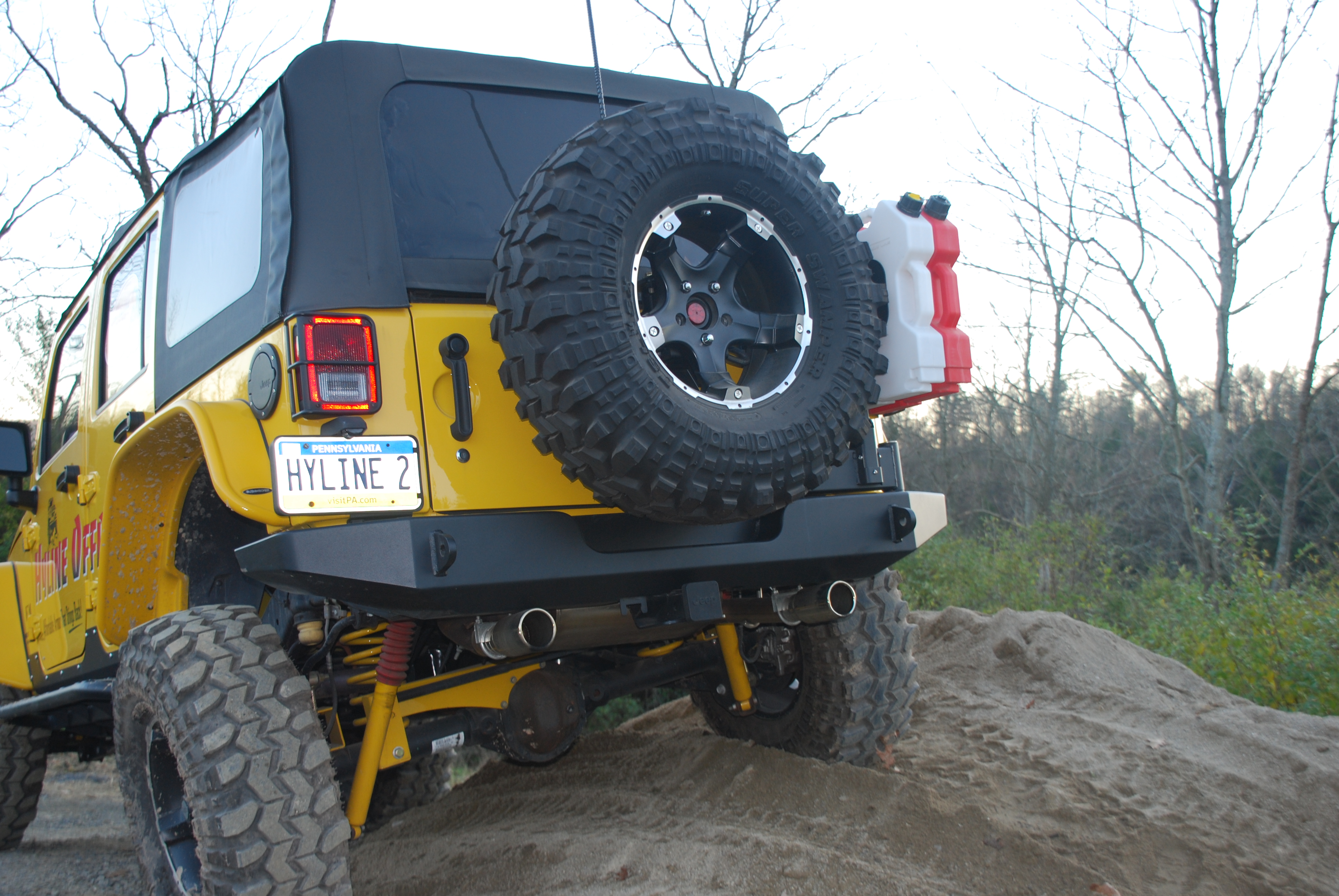

Our Jeep JK tire carrier is a swing out tire carrier for your Wrangler JK. This GEN II Jeep tire carrier is a must have if you’re running oversize tires. The JK’s tailgate might hold the weight of an oversize tire for a while, but it will begin to sag over time.

Our Jeep Swing out Tire Carrier is heavy duty and opens and closes with the stock tailgate. Finally, with this Jeep JK tire carrier there is no cumbersome latch or secondary operation to open your swingout tire carrier.

Simply open your tailgate latch and the tire carrier will swing open with it.  The tire carrier installs directly to our specially designed Rear Bumper (400.200.120) and features all of the following:

  • Solid Steel Tube Construction (Thick .120” Wall 2”x4” Rectangle Steel Tubing)
  • Heavy Duty 1-1/2” Solid Steel Greasable Machined Pivot Pin that is inserted through an extra thick ¼” Wall DOM Steel Tube
  • Fully Adjustable Sliding Tire Mount for various width tires and wheels (No Drilling Necessary unlike other competitor models)
  • Pre-Cut Hole for mounting our 2” LED Third Brake Light
  • Plastic Machined Alignment Block used to isolate any rattle noise and vibration between the Tire Carrier and the Tailgate
  • Optional bracket attachment for RotoPax Containers (up to 4 gallons) or a bracket to mount a Hi-Lift Jack (Can only mount one or the other)
  • Carries up to 38” Tire
  • All necessary Grade 8 & Grade 5 mounting hardware included

All our Jeep JKTire Carriers receive a thorough zinc phosphate rinse and cleaning, then are E-Coated and Powder Coated with an easy to clean light black texture. The textured powder coat matches the texture on the stock black fender flares almost perfectly. Completely Bolt on, No Drilling Necessary.

**Swingout Tire Carrier Only, Does not include Rear Bumper (400.200.120), Rotopax Accessory Mount Arm (400.200.150) Rotopax Pack Mount (400.200.160), or LED 3rd Brake Light (075.000.100)**

See our Jeep rear bumpers to go along with your new Jeep JK Tire carrier.

Jeep JK Tire Carrier | Jeep Swing out Tire Carrier

Tools Required:

Ratchet, 13mm Socket, Socket, Socket, 9/16 Socket, T20 Torx Bit, Wrench, Wrench, 7/16 Wrench, 5 lb. Hammer or Heavy Duty Vise, Grease Gun w/Lithium Grease, Wire Cutters

Parts Included:

Swingout Tire Carrier, Strike Pin, Striker Pin Mount, Latch Handle Gasket, Rotary Slam Latch, 1/8 PTF Stainless Steel Grease Fitting, 2 4 Black Plastic Tube Plug, 3 Wheel Studs, Slide Adjustable Tire Mount, Machined Pivot Pin, Brass Washers for Pivot Pin, Machine Wear Pad, Set of 3 Stainless Steel Shim Pads, Gas Strut w/ Ball End, & All Necessary Hardware.
