Jeep JK LED Light Bar Mounting Brackets

SKU: 400.600.100
Weight: 15 lb
Dimensions: 30 in × 12 in × 4 in

All JK Model Years

Installation Time:

1 Hour


1 Year Limited

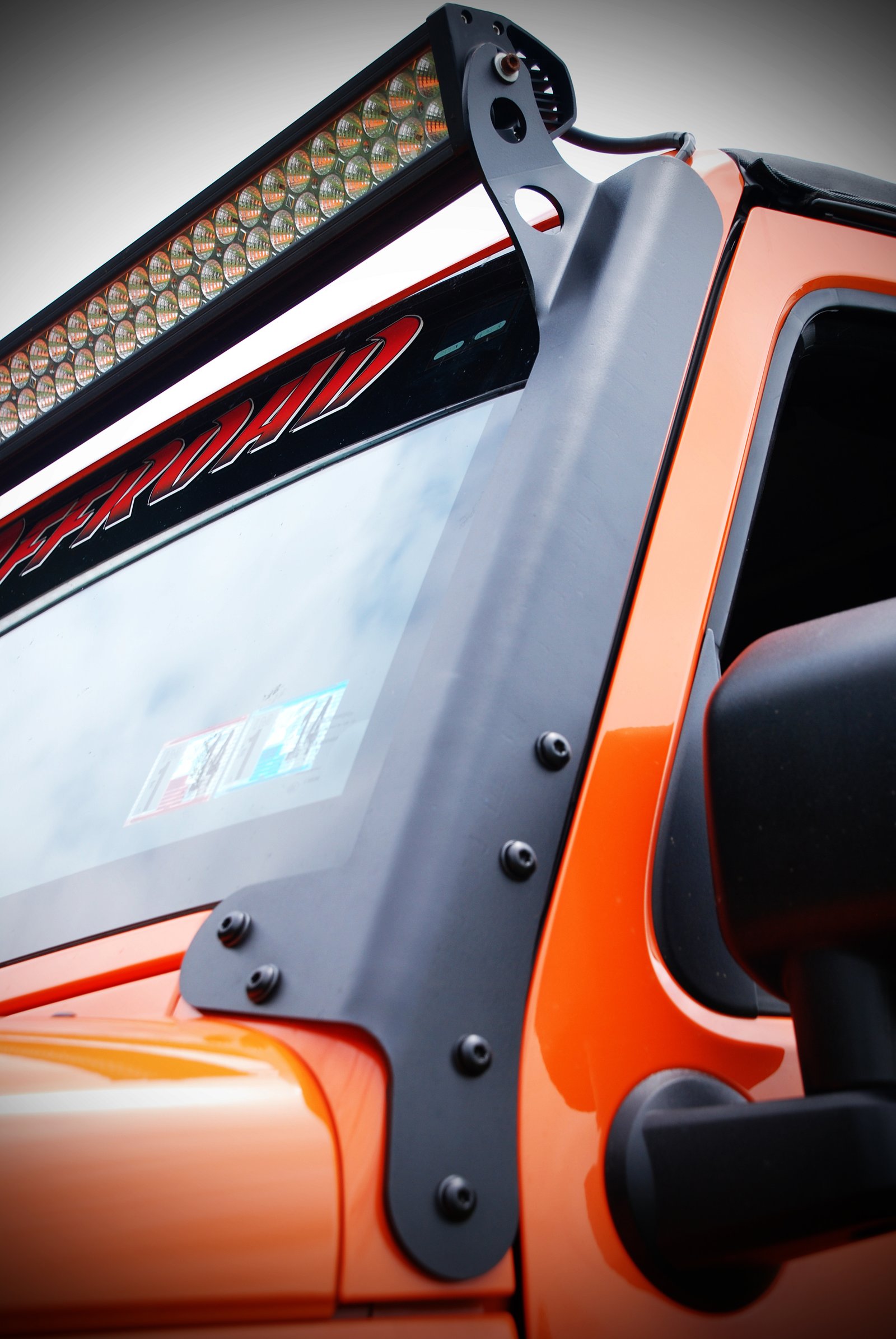

The Hyline Offroad JK Light Bar Mounts allow you to easily install a 50" LED Light Bar above your windshield.


The Light Bar Mounts are manufactured using 3/16" thick steel, laser cut and formed using a CNC precision press brake.


They are designed as one piece construction with no weld seams for a smooth finished cosmetic look.


No drilling or other modification is necessary for installation, they simply bolt to the windshield mounts using existing hardware.


Precision cut Rubber Gasket liners are included with the light bar mounts to protect your vehicles paint from scuffing.


Another unique feature with our Light Bar Mount is the ability to hide the LED light wiring by running it behind the bracket.


All brackets are finished complete with E-Coating &  Black Fine Texture Powder Coating for superb corrosion resistance.


*** PLEASE NOTE: The actual dimension between our mounting brackets is 52”.  A true 50" LED light bar is 50" of LED's.....NOT the overall size.  Make sure the light bar you order measures 52” overall, from end housing to end housing.


Proudly Made 100% In USA.

Tools Required:

T40 Torx and Ratchet

Parts Included:

Driver & Passenger Side Light Bar Mount and Rubber Gasket Liners
